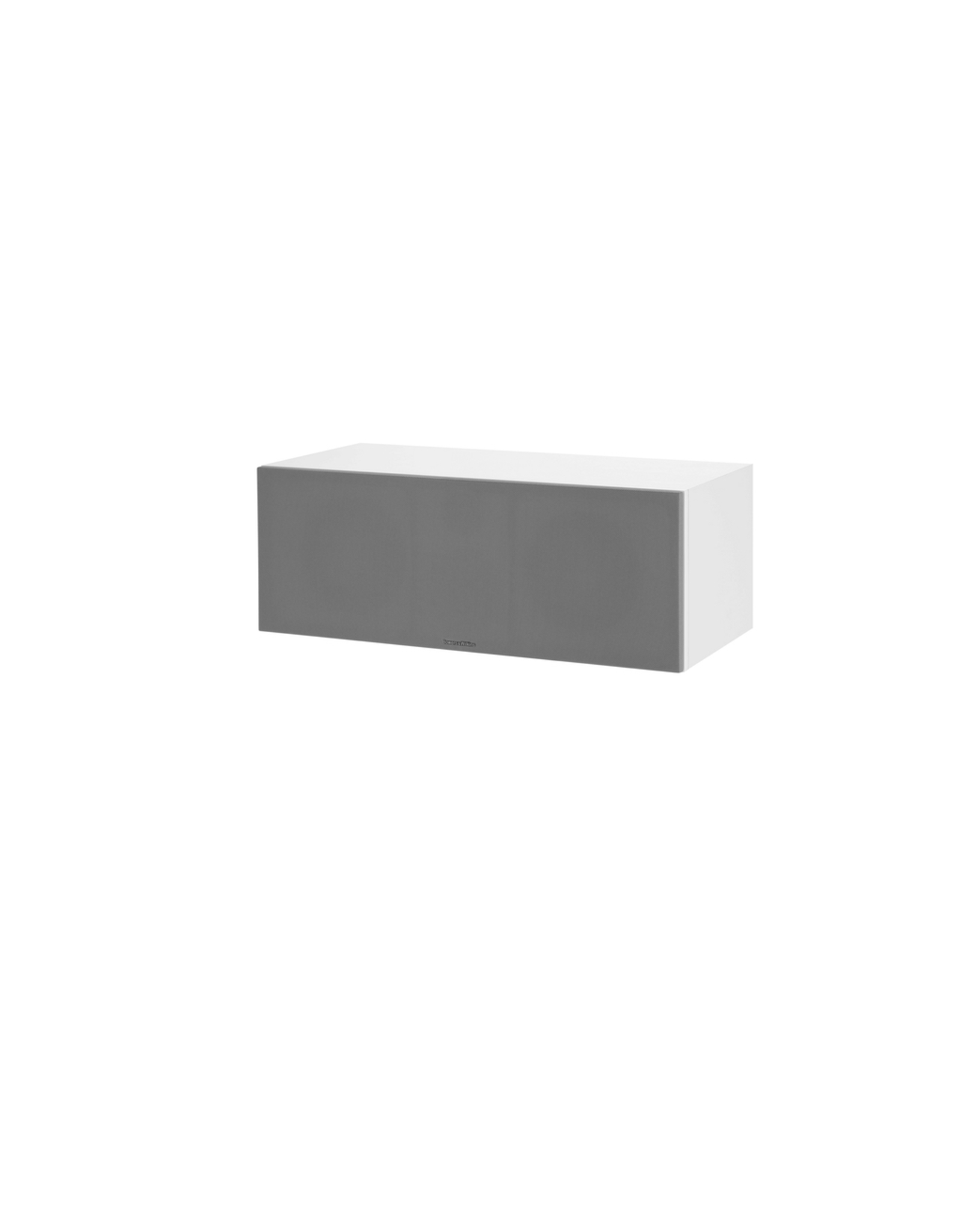

B&W HTM61 S2 CENTRE SPEAKER

$1,199.00
Article number: P-1196
Availability: In stock

HTM61S2 Overview

The HTM61 S2 now features a Decoupled Double Dome tweeter, ideal for delivering the clarity needed for dialogue. The double dome enhances rigidity without adding weight, for a more precise response, while decoupling the tweeter from the main enclosure removes unwanted resonances and vibration. The result is absolutely clear.

Using construction techniques found in the 600 Series floorstanders, the HTM61 S2 also features two 6.5-inch bass drivers that use new aluminium cones, for an ideal mix of punch and precision.

Below the Decoupled Double Dome tweeter and between the two 6.5-inch bass drivers lies an FST midrange driver. And to the rear of the speaker are two Flowports. Together these ensure stunning audio clarity is carried across the entire frequency range, and a new symmetrical design improves integration and sound dispersion. The result is a serious centre speaker - stunning for big-screen action.



Specifications

Woven Kevlar
Crossover Tuning
Nautilus Tapering Tube
Flowport
Mushrooms
FST
Technical features Decoupled Double Dome aluminium tweeter with Nautilus™ tube loading
Kevlar® brand fibre cone FST™ midrange driver
Dual-layer aluminium cone bass driver
Flowport™
Description 3-way vented-box system
Drive units 1x ø25mm (1 in) aluminium dome high-frequency
1x ø100mm (4 in) woven Kevlar® cone FST™ midrange
2x ø165mm (6.5 in) aluminium cone bass
Frequency range -6dB at 42Hz and 50kHz
Frequency response 50Hz - 22 kHz ±3dB on reference axis
Dispersion Within 2dB of reference response
Horizontal: over 20º arc
Vertical: over 60º arc
Sensitivity 88dB spl (2.83V, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 95Hz - 22 kHz
<0.5% 180Hz - 20 kHz
Nominal impedance 8Ω (minimum 5.2Ω)
Crossover frequencies 400Hz, 4kHz
Recommended amplifier power 30W - 150W into 8Ω on unclipped programme
Max. recommended cable impedance 0.1Ω
Dimensions Height: 218mm (8.6 in)
Width: 590mm (23.2 in)
Depth: 304mm (12 in) cabinet, grille and terminals
Net weight 17.2kg (37.8 lb)
Finishes Black Ash
White
